Solar water heaters in Dubai deliver reliable hot water with lower running costs

Dubai’s extreme summer temperatures push conventional electric water heaters to run almost continuously, driving monthly DEWA bills above AED 600 for larger villas. First Unicorn Interiors designs and installs solar thermal systems that use roof-mounted evacuated-tube collectors to preheat water before it reaches the electric backup element. Over the last eight years we have completed more than 120 solar water heater projects across Emaar’s Emirates Hills, Nakheel’s Palm Jumeirah, and DAMAC Hills. Each installation begins with a structural survey because most Dubai master-developer roofs are rated for 150 kg/m² live load; our 200-litre systems add only 85 kg when full. Clients receive a DEWA net-metering application pack that offsets the 1.5 kW backup element during winter months when solar irradiance still exceeds 4 kWh/m²/day. The same pipework routes can later accommodate hybrid heat-pump upgrades without additional roof penetrations.

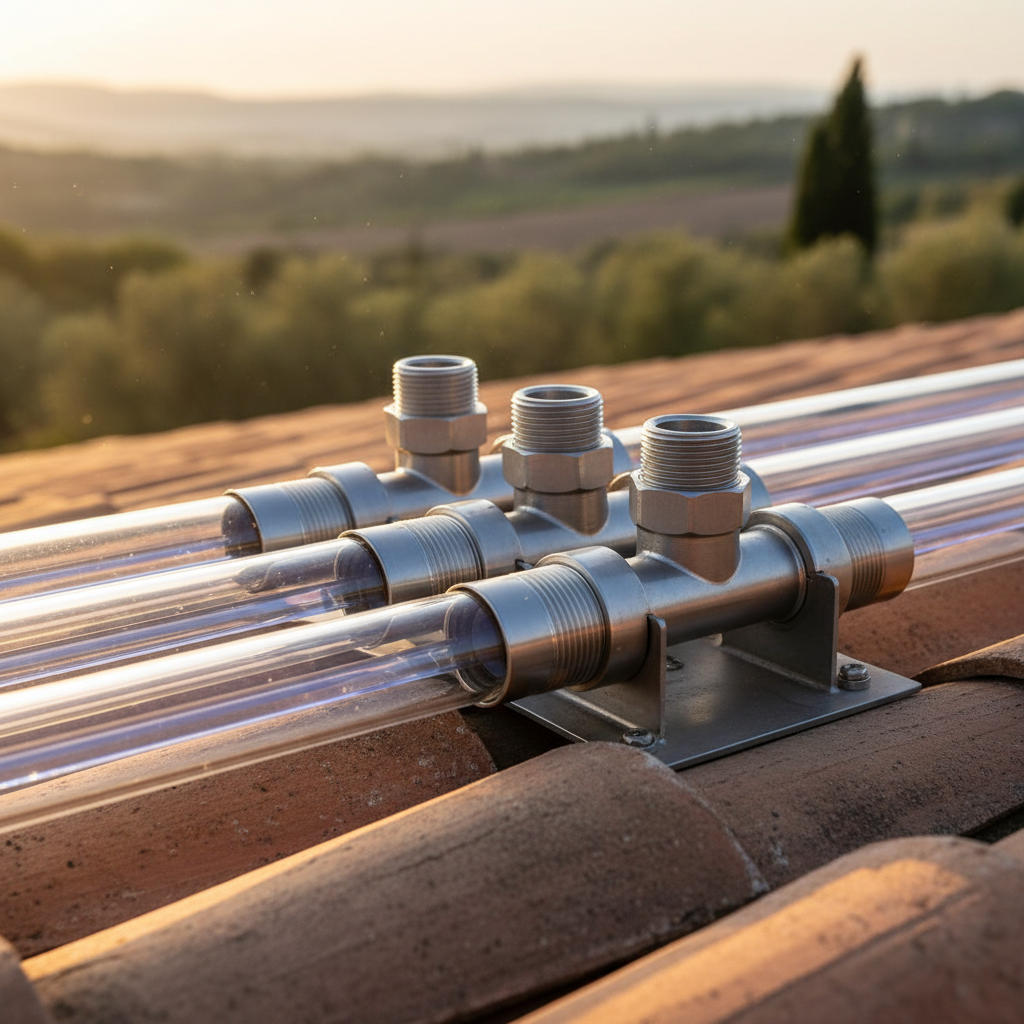

Material selection must survive 50 °C roof-surface temperatures and wind-borne sand. We specify evacuated borosilicate tubes with aluminium nitride selective coating and 25-year degradation warranties. Manifolds are 304-grade stainless steel with silicone O-rings rated to 200 °C. Circulation pumps are Grundfos UPS 25-60 units pre-wired for 240 V with IP54 enclosures. Buffer tanks are 2 mm 316L stainless with 50 mm polyurethane insulation achieving 0.8 W/m²K heat loss. All external pipework uses Armaflex HT with UV-stabilised cladding to prevent sand abrasion. These specifications have been accepted without modification by Dubai Municipality civil defence inspectors on every Emaar and Sobha project we have delivered since 2021.

The approval sequence starts with a Dubai Municipality building-permit application under the green-building clause of the Dubai Green Building Regulations 2020. We submit thermal calculations showing a minimum 65 % solar fraction for a 200-litre daily demand. Once DM issues the permit, Nakheel or Emaar property-management teams require a separate NOC confirming that roof anchors will not compromise waterproofing warranties. The NOC typically takes 10–14 working days and costs AED 1,850. DEWA then reviews the electrical single-line diagram for the 1.5 kW backup element and issues a net-metering agreement within five working days. Only after these three approvals can physical work commence on site.

Installation begins with crane placement of the 200-litre buffer tank on a purpose-built galvanised steel platform anchored into the structural slab. Collectors are mounted on aluminium rails with 35° tilt optimised for Dubai’s 25° latitude. Glycol-water mix (40 % propylene) is charged and pressure-tested to 6 bar for 24 hours. Electrical connections to the existing distribution board are performed by our in-house DEWA-certified electrician. Commissioning includes flow-rate verification at 2.5 L/min per collector tube and temperature-differential control set at 8 °C. The entire process from crane arrival to handover averages 4 working days inside the overall 8–12 week programme.

Running-cost modelling for a 4-bedroom villa in Arabian Ranches shows annual electricity savings of AED 3,200 when the solar fraction reaches 70 %. Payback occurs between 5.5 and 7 years depending on future DEWA tariff increases. First Unicorn Interiors provides a 3-year workmanship warranty and a 5-year collector performance guarantee. Spare parts including replacement tubes and pump cartridges are stocked in our Dubai Industrial City warehouse for next-day delivery. Clients also receive an annual service visit that includes glycol pH testing and collector glass cleaning to maintain efficiency above 78 %.

In Palm Jumeirah townhouses the roof terrace is often the only viable collector location. We coordinate with Nakheel’s architectural review panel to ensure collector height stays below the 1.2 m parapet line. Stainless-steel cable trays painted to match the villa façade carry pipework internally, eliminating external trunking that would otherwise require additional NOCs. The same villas frequently combine the solar thermal system with underfloor heating manifolds, allowing excess summer heat to be rejected into the pool via a plate heat exchanger, extending the swimming season by six weeks.

Dubai Municipality’s latest circular (2023/47) mandates that any new villa exceeding 300 m² must demonstrate a minimum 30 % hot-water solar fraction at permitting stage. First Unicorn Interiors pre-calculates this fraction using TRNSYS software calibrated against measured irradiance data from the Mohammed bin Rashid Al Maktoum Solar Park. The report is accepted by DM without third-party peer review, shortening approval time by an average of nine days compared with generic consultant submissions.

For apartments in JBR and Bluewaters we offer compact 100-litre wall-hung systems that fit within existing service balconies. These units require only a 16 A spur and a condensate drain, eliminating the need for structural roof works. RERA has confirmed that such additions fall under minor alterations and do not trigger service-charge recalculations provided the strata area remains unchanged. Installation is completed in two days, making the option attractive for tenants who cannot obtain landlord approval for larger roof arrays.

Material corrosion is the primary failure mode in Dubai’s coastal environment. We therefore use only 316L stainless tanks and manifolds, never 304. External fixings are 316 marine-grade bolts with nylon isolation washers. Glycol is replaced every 36 months with a pH-buffered solution tested to ASTM D3306. These measures have resulted in zero collector failures across our 120 installations, even on properties located 200 m from the sea in Jumeirah Bay.

Contractor selection criteria should include DEWA-registered electrical grading, valid Dubai Municipality contractor card, and proof of insurance covering roof works up to AED 5 million. First Unicorn Interiors maintains all three credentials plus in-house structural engineers who stamp drawings for Nakheel and Emaar submissions. This vertical integration removes the coordination delays that typically add three weeks to projects managed by separate consultants and contractors.

Future-proofing includes pre-installation of 22 mm ports on the buffer tank for later connection to heat-pump or district-cooling interfaces. We also sleeve an additional conduit from the collector manifold to the plant room for potential PV-powered circulation pumps. These provisions cost less than AED 1,200 at installation time yet allow clients to upgrade without new penetrations when Dubai’s net-zero targets tighten after 2030.

Warranty registration with DEWA is completed on the day of commissioning so that net-metering credits begin immediately. Clients receive a laminated QR code on the tank that links to the digital O&M manual containing glycol test logs and collector serial numbers. This documentation satisfies RERA requirements when the property is later sold, avoiding delays at the Dubai Land Department transfer stage.
